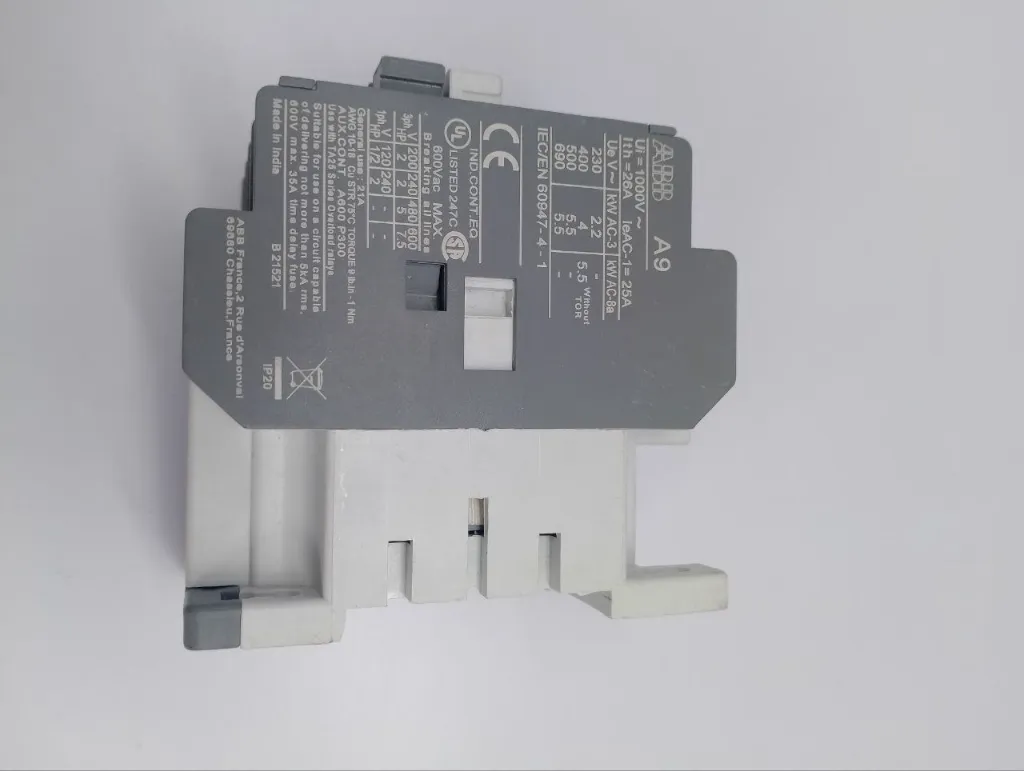

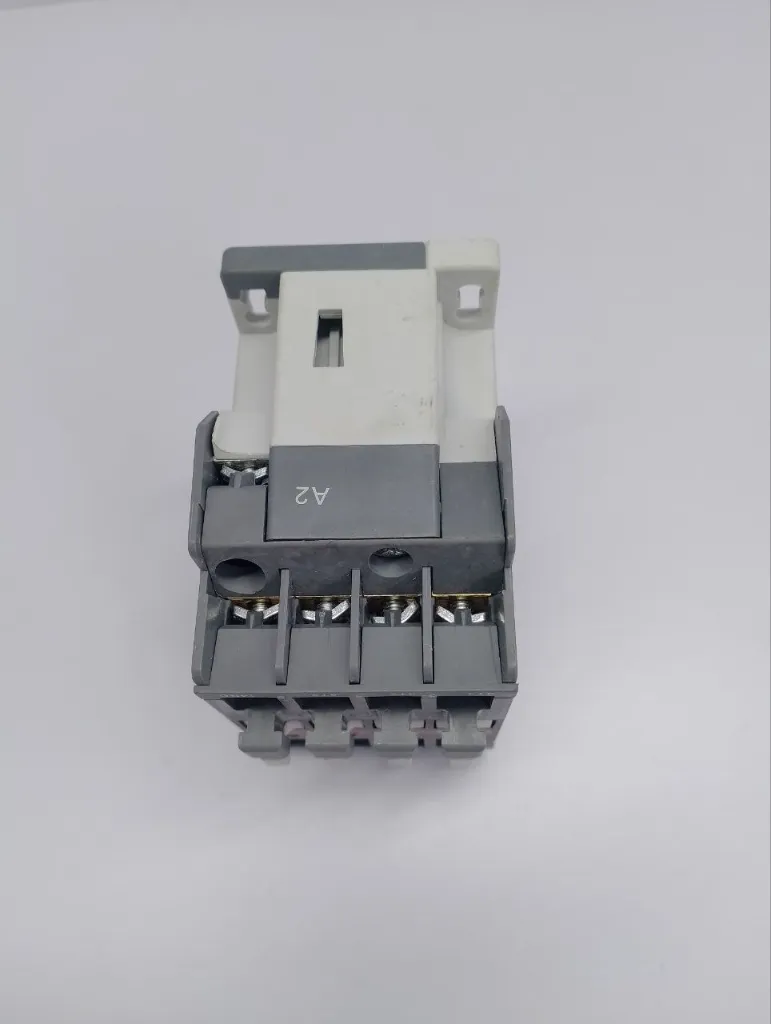

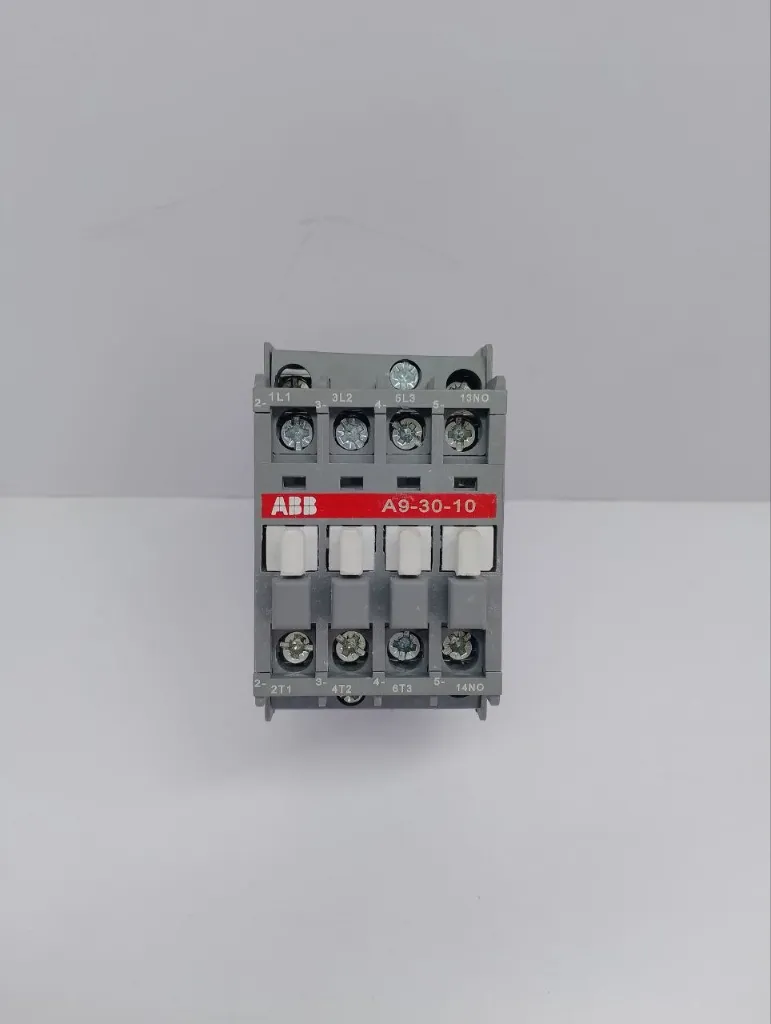

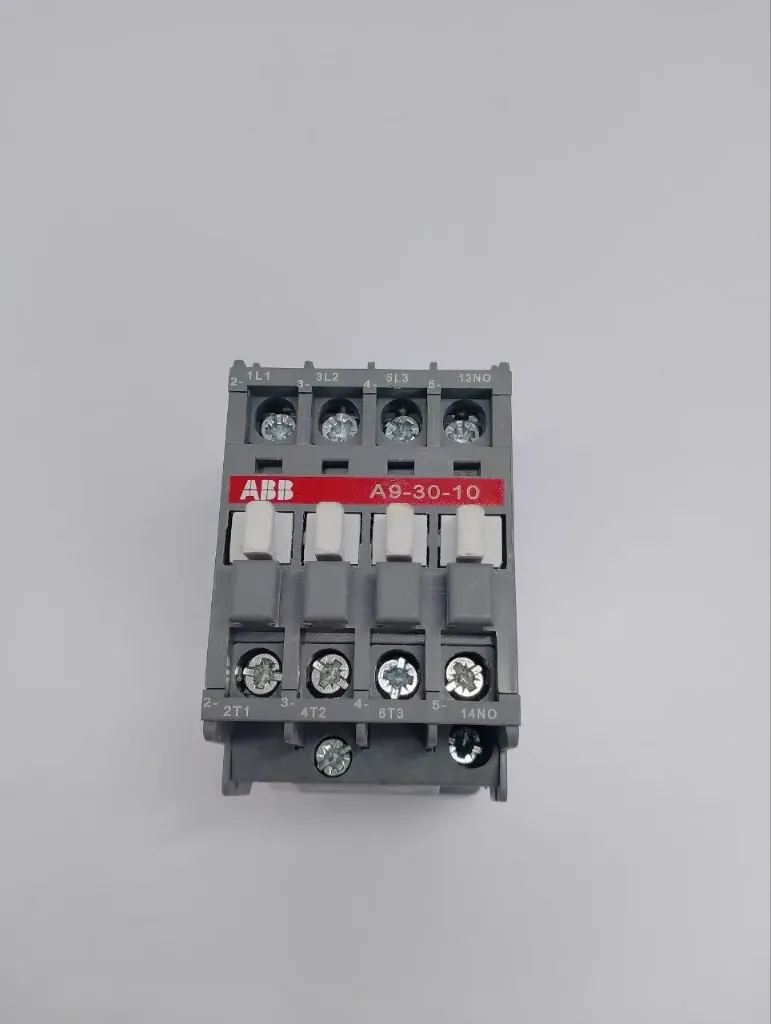

ABB A9-30-10 Magnetic Contactor 3 Pole 9A 220-240V AC Motor Starter Relay A93010

Specifications

• Manufacturer: ABB

• Model Number: A9-30-10

• Part Number: A9-30-10

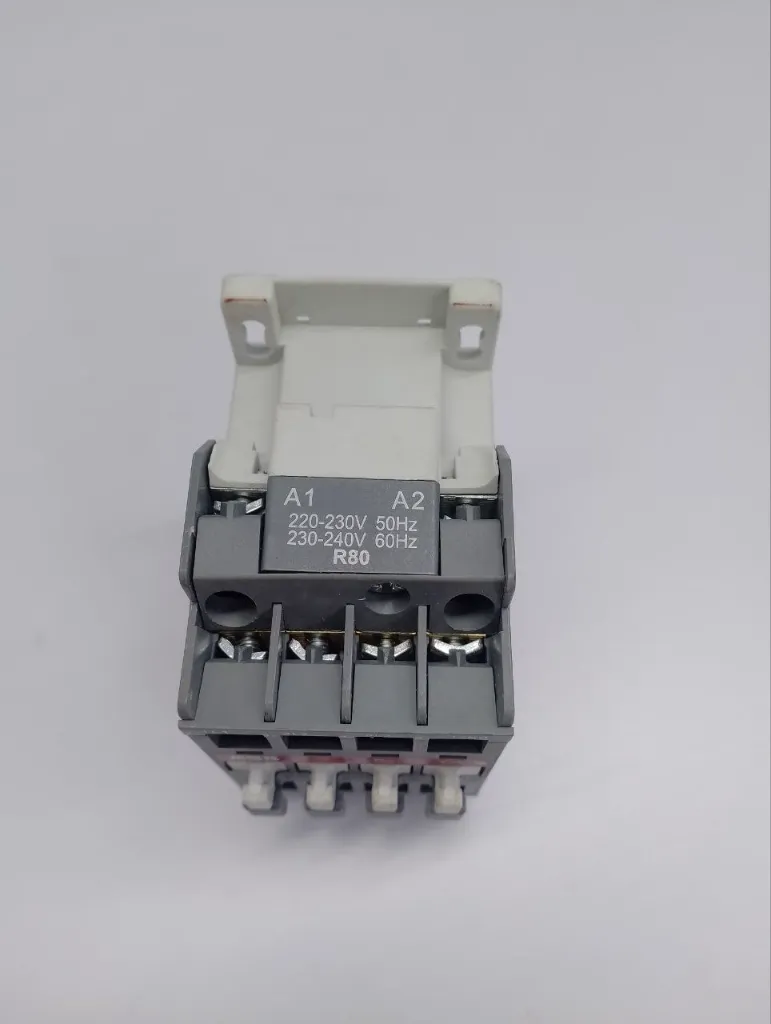

• Coil Voltage: 220–230V 50Hz / 230–240V 60Hz (R80)

• Rated Thermal Current {Ith}: 26A / AC-1 Current (Ie): 25A

• Power Rating (AC-3 3-Phase):

  • 230V: 2.2 kW

  • 400V: 4 kW

  • 500V: 5.5 kW

  • 690V: 5.5 kW

• Rated Insulation Voltage ($U_i$): 1000V

• Frequency: 50/60 Hz

• Number of Poles: 3 Main Power Poles (3NO)

• Auxiliary Contacts: 1 NO (13-14 NO)

• General Use Current Rating: 21A

• Motor Horsepower Ratings (UL/CSA):

  • 1-Phase: 1/2 HP (120V), 2 HP (240V)

  • 3-Phase: 2 HP (200V), 2 HP (240V), 5 HP (480V), 7.5 HP (600V)

• Tightening Torque: 9 lb·in (1 N·m)

• Terminal Wire Range: AWG 10–18 Cu STR 75°C

• IP Rating: IP20

• Standards: IEC/EN 60947-4-1

• Country of Origin: Made in India

• Condition: Used

 Applications

• Marine Industry

• Industrial Automation

• Control Panels

• Manufacturing Plants

• Oil & Gas Industry

• Power Plants

• Chemical Plants

• Process Automation

 FAQs

• Is this product new? – No, it is a used .

• Is this original product? – Yes, it is a genuine ABB product.

• Is international shipping available? – Yes, international worldwide shipping is available.

• Can you provide bulk quantity? – Depends upon the current stock available.

• Can you share additional product images? – Yes, available on request.
