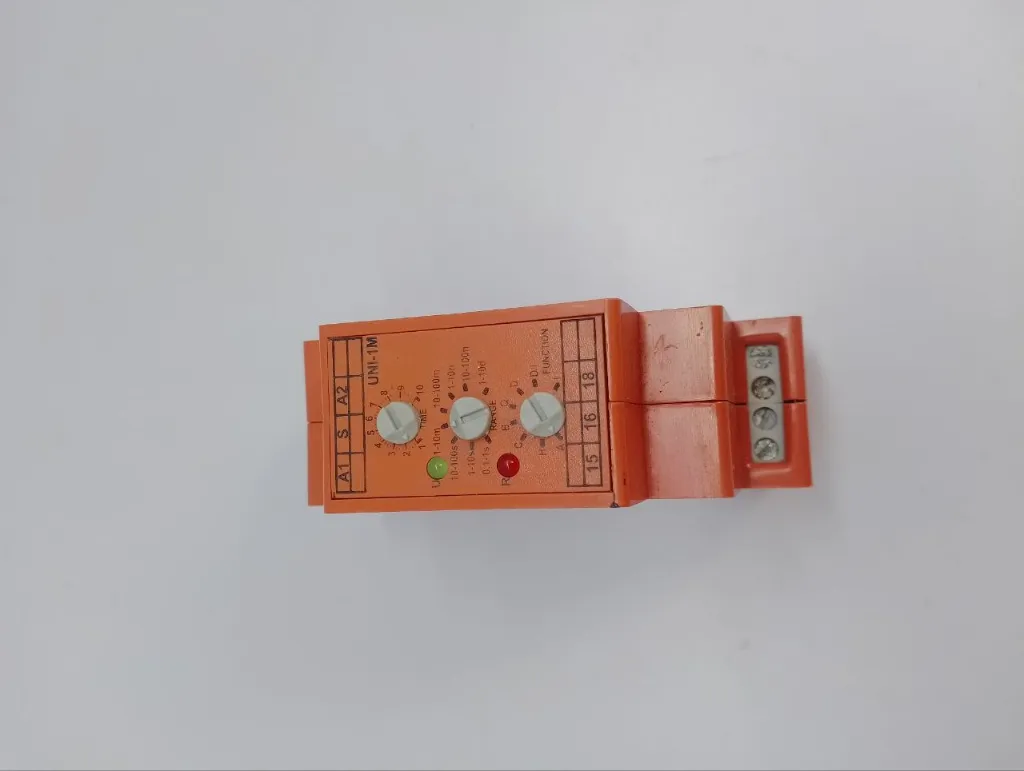

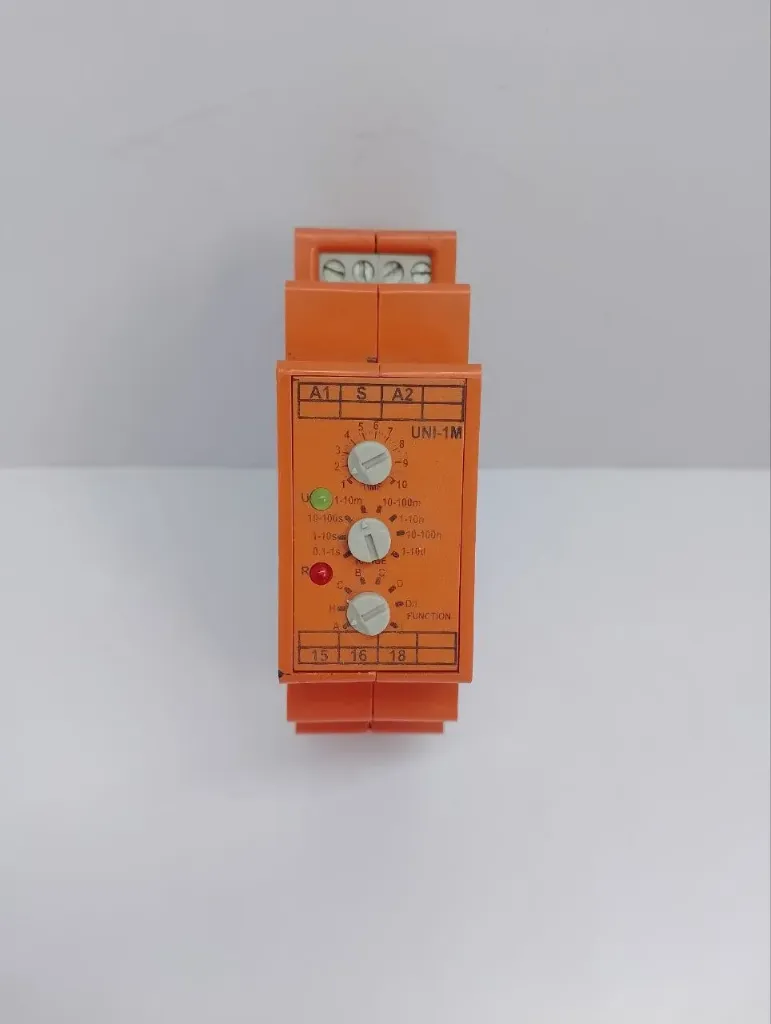

FOXTAM UNI-1M — Specifications
|
| Brand | Foxtam Controls |
| Model | UNI-1M |
| Type | Multi-function Timer Relay |
| Mounting | DIN Rail |
| Output | SPCO (Single Pole Changeover) |
| Supply Voltage | 12–250V AC/DC |
| Time Range | 0.1 sec to 10 days |

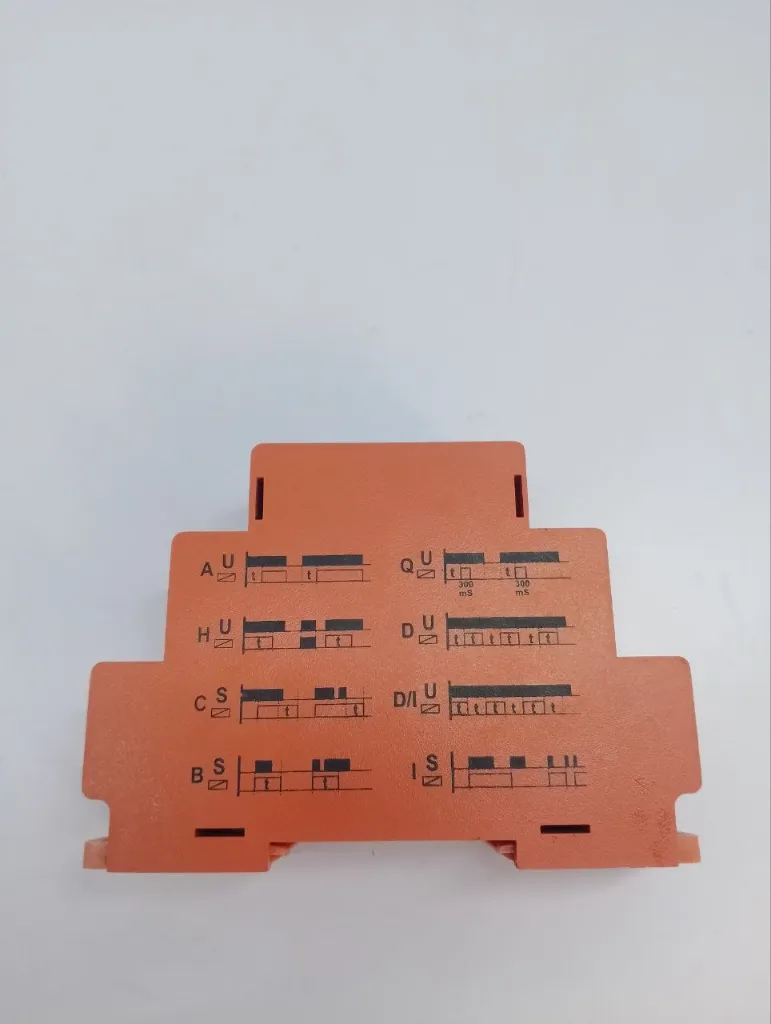

| Selectable Functions | 8 |
| Output Rating | 16A / 250V AC1 |
| Maximum Breaking Capacity | 4000 VA |
| Repeat Accuracy | ±0.5% of set value |
| Reset Time | Max. 100 ms |
| Power Consumption | 5 VA / 2.8 W max. |
| Trigger Input | S, max. 5 mA |
| Minimum Trigger Time | 25 ms |
| Operating Temperature | -20°C to +40°C |
| Storage Temperature | -20°C to +60°C |
| Maximum Cable Size | 2.5 mm |
| Width | 27 mm (1.5 modules) |
| Insulation | 2.5 kV, 50 Hz impulse |
| Certification | CE marked |
| Housing | Polycarbonate, UL 94 V-0 |
| Product Function | Timing/control of relay output |
Time Ranges
-
0.1–1 sec
-
1–10 sec
-
10–100 sec
-
1–10 min
-
10–100 min
-
1–10 hr
-
10–100 hr
-
1–10 days
Applications
-
Industrial automation and machine control
-
Motor and conveyor control
-
Lighting control
-
Heating and cooling systems
-
HVAC / BMS control panels
FAQ
1.Is this product new? — No, this item is used.
2.Is this original product? — The product is marked FOXTAM UNI-1M and matches the UNI-1M model listed by Foxtam Controls.
3.Is international shipping available? — Yes, international shipping is available .
4.Can you provide bulk quantity? — Yes, bulk quantity depends upon stock availability.
5.Can you share additional product images? — Yes, additional images are available on request.
