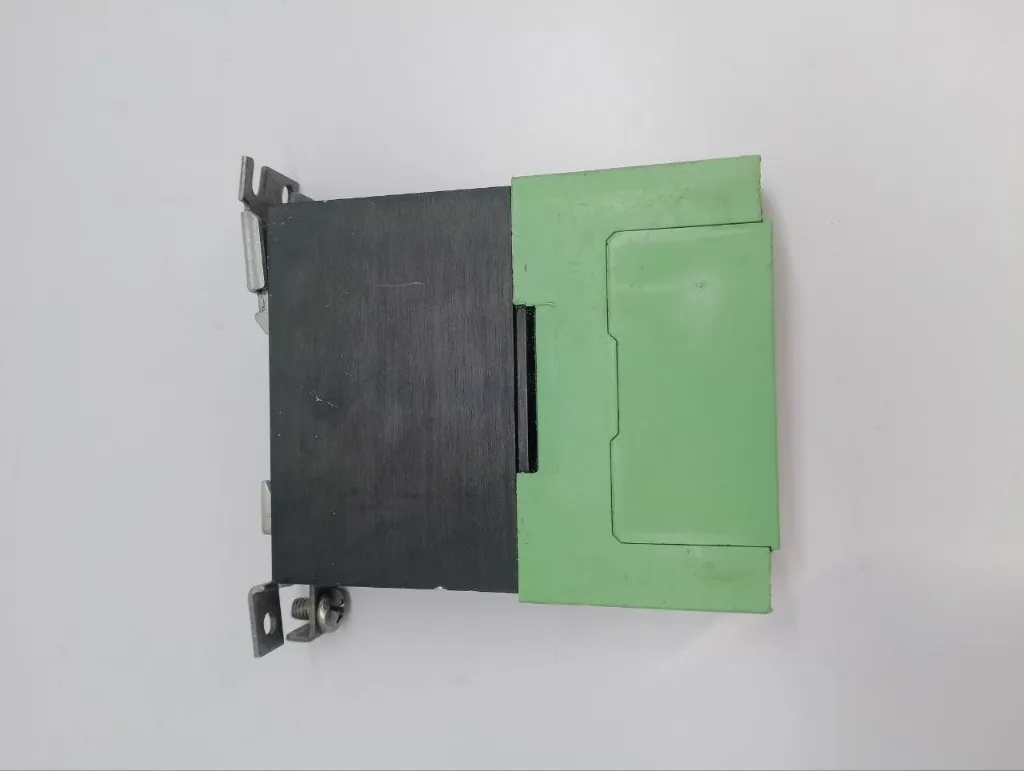

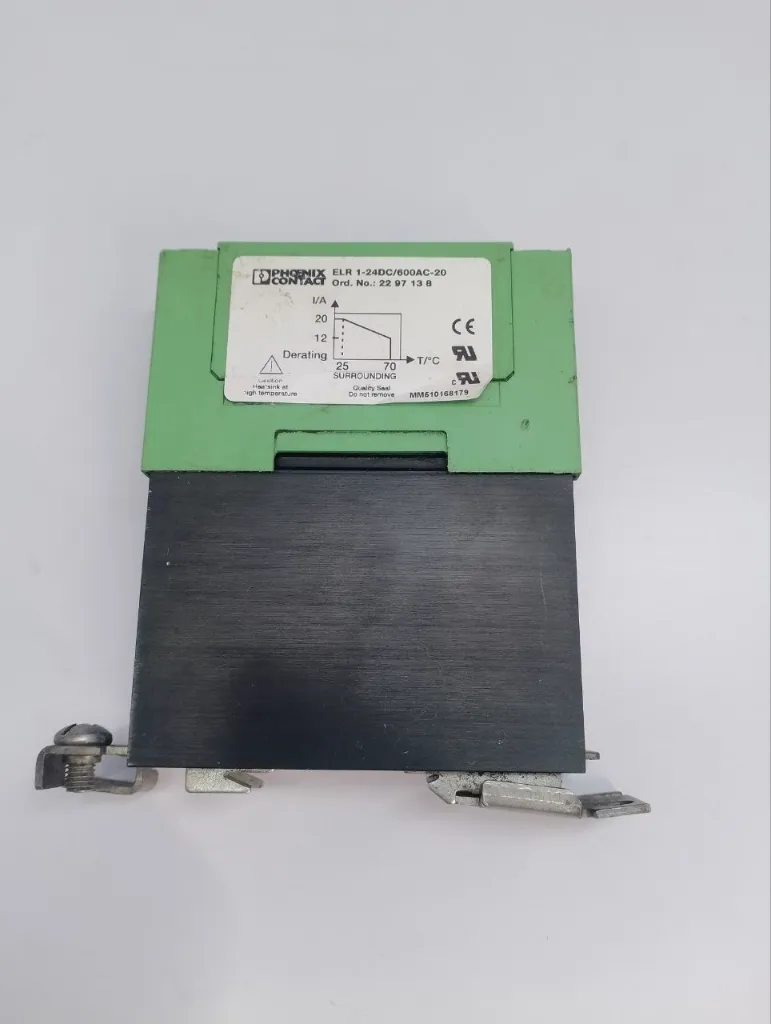

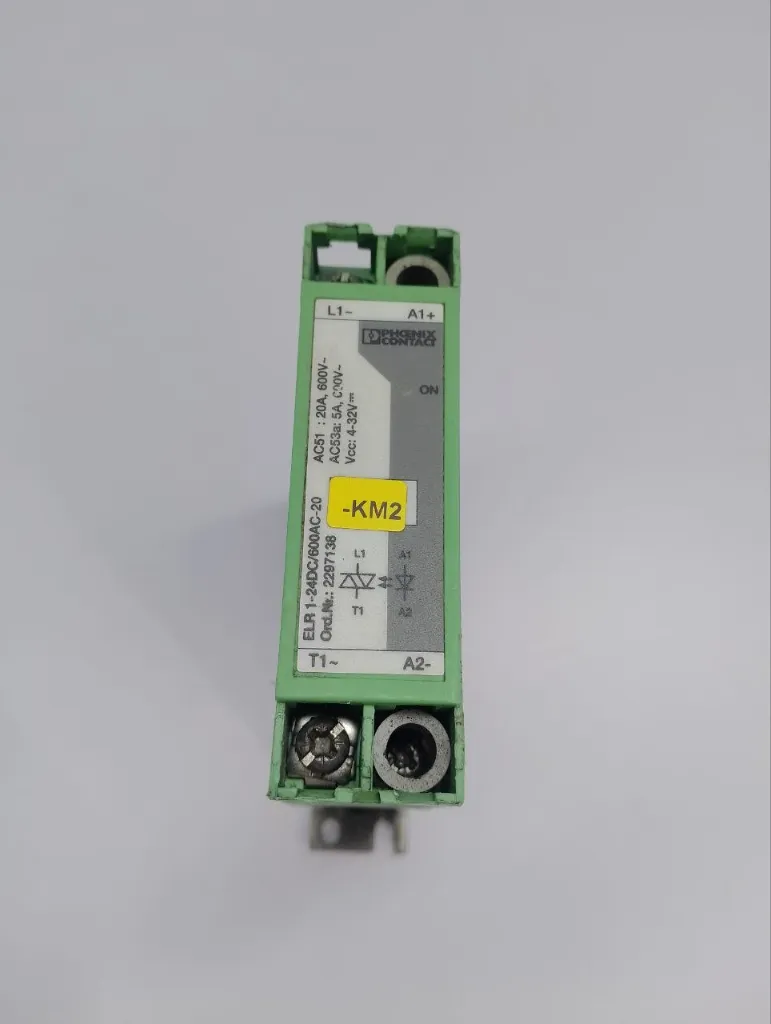

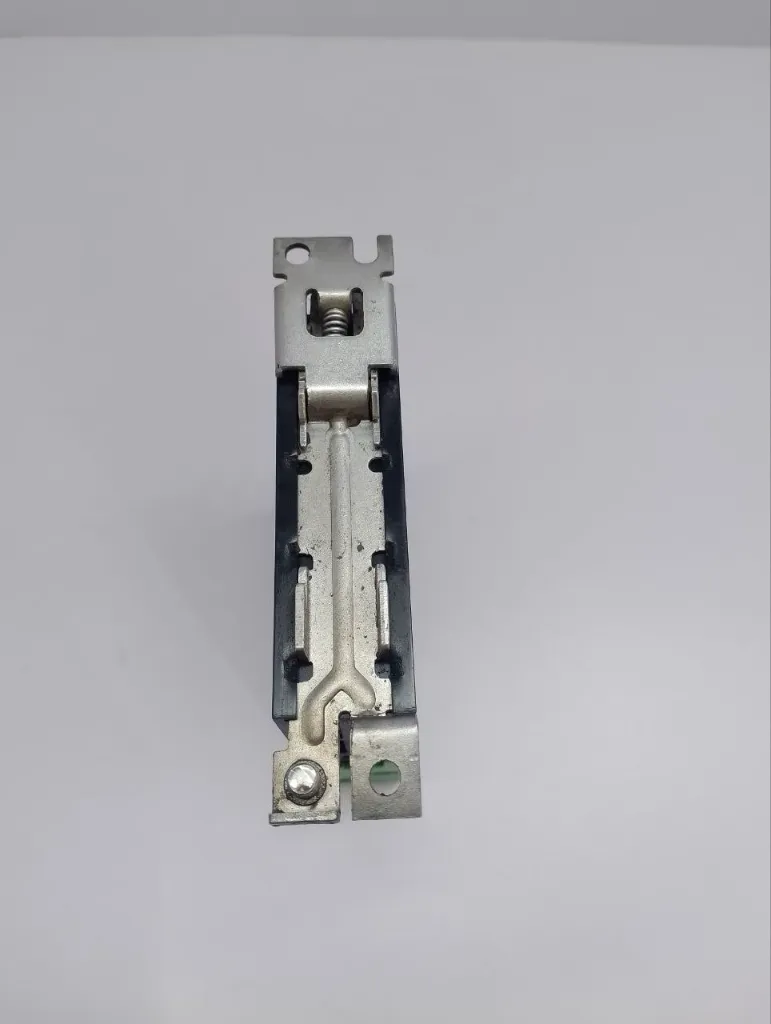

PHOENIX CONTACT ELR 1-24DC/600AC-20 Solid State Contactor 24VDC Order Nr.2297138

1. Specifications

SpecificationInformation
ManufacturerPhoenix Contact
Model NumberELR 1-24DC/600AC-20
Part / Order Number2297138
Product TypeSingle-Phase Solid-State Contactor
Control / Input Voltage24 V DC
Triggering Voltage Range4 V DC to 32 V DC
Rated Input CurrentApprox. 12 mA
Output / Operating Voltage Range42 V AC to 660 V AC
Rated Output Current AC-5120 A
Rated Output Current AC-53a5 A
Load Current Range350 mA to 20 A
Mains Frequency45–65 Hz
Number of Phases1 Phase
Switching TypeZero Voltage Switching
Maximum Power Dissipation32 W
Peak Off-State Voltage1200 V
Surge Current250 A at 10 ms
Connection TypeScrew Connection
Mounting TypeDIN Rail Mounting
Operating Temperature-30°C to +70°C
Storage Temperature-40°C to +80°C
Dimensions (W × H × D)22.5 × 103 × 103 mm
Weight256.1 g
ColorGreen
Country of OriginMalta (MT)
GTIN4046356132022


Applications

  1. Industrial automation control systems
  2. Motor and load switching applications
  3. Control panels and electrical cabinets
  4. Heating and resistive load control
  5. Machinery and manufacturing equipment

FAQs

  • Is this product new? – No, appears used based on visible condition.
  • Is this an original product? – Yes, Phoenix Contact original labeling is present.
  • Is international shipping available? – Yes, international shipping can be offered.
  • Can you provide additional product images? – Yes, available on request.
  • Can you provide additional information? – Yes, available on request.
$ 99.00 $ 99.00

Add to cart
