| Brand | Mitsubishi Electric |
| Product | Magnetic Contactor |
| Model | S-N11 |
| Type | AC-operated magnetic contactor |
| Main contacts | 3 NO |
| Auxiliary contacts | 1 NO + 1 NC |
| Rated insulation voltage (Ui) | 690 V |
| Rated thermal current (Ith) | 20 A |
| AC-3 motor rating | 2.7 kW @ 200–220 V; 4 kW @ 380–440 V; 5.5 kW @ 500–550 V |
| Global AC-3 rating | 3.5 kW @ 220–240 V; 5.5 kW @ 380–440 V; 5.5 kW @ 500 V; 5.5 kW @ 690 V |

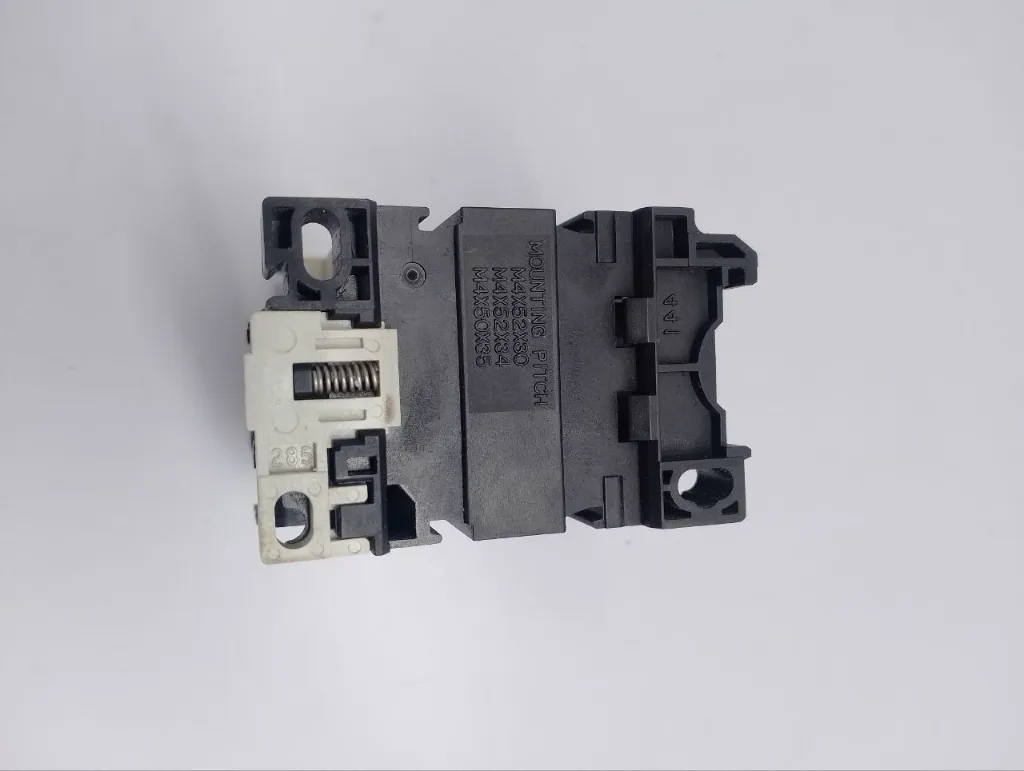

| Mounting | Screw mounting / DIN rail mounting |

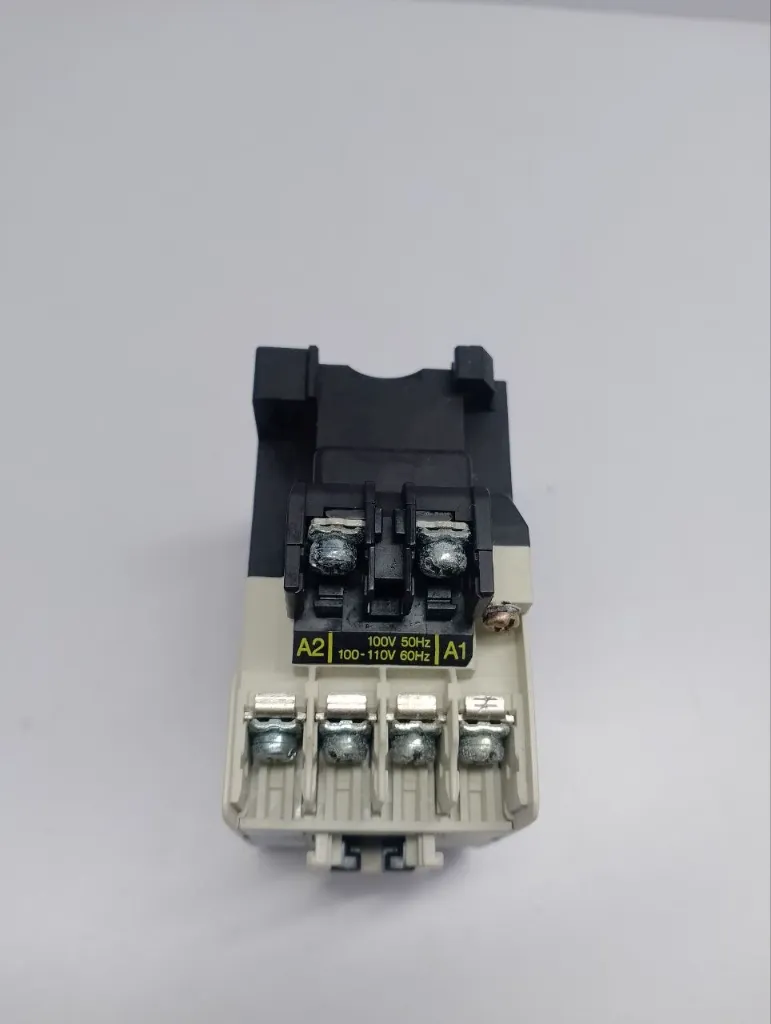

Coil Voltage
| 100 V AC, 50 Hz / 100–110 V AC, 60 Hz |
| Approx. dimensions | 78 × 43 × 78 mm (H × W × D) |
| Country of origin | Japan |
Application
This is a magnetic contactor used for switching/control of electrical loads, especially AC motors. Mitsubishi describes a magnetic contactor as a device that opens/closes the main contacts using an electromagnetic coil.
Typical applications include:
-
Motor ON/OFF control
-
Pumps
-
Fans/blowers
-
Compressors
-
Conveyors
-
Industrial control panels
-
Motor starters
FAQs
-
Is this product new? – yes ,its used.
-
Is this an original product? – Yes, it is an original product.
-
Is international shipping available? – Yes, available on request.
-
Can you provide bulk quantities? – Yes, subject to stock availability.
-
Can you share additional product images? – Yes, available on request.
