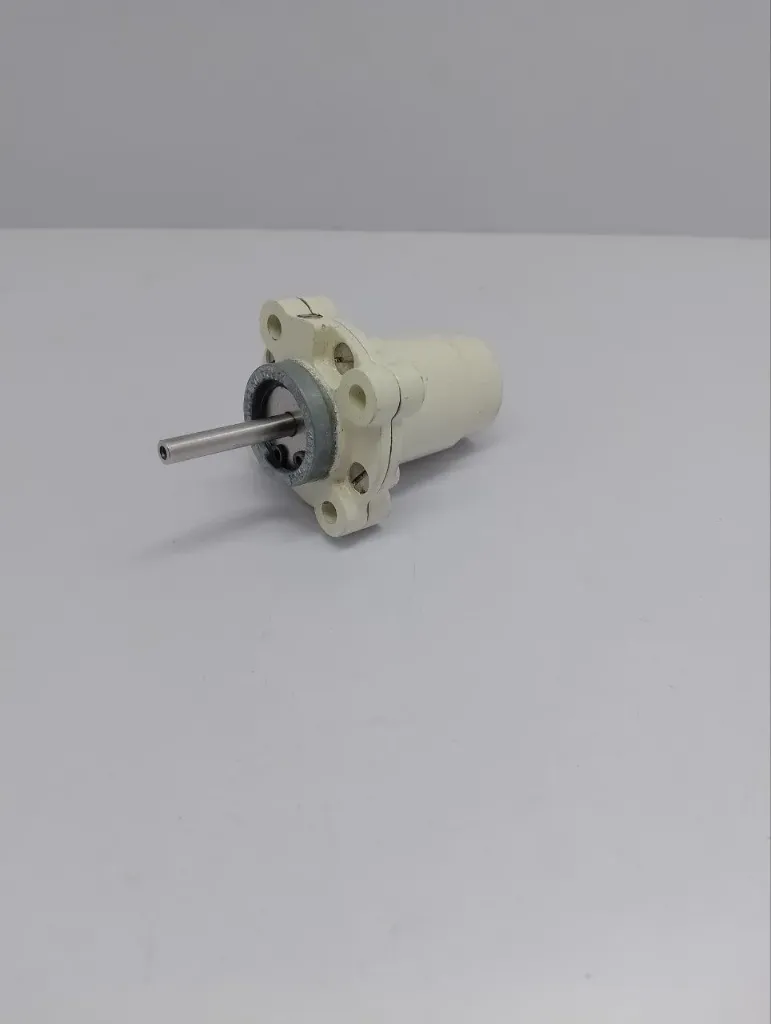

KINETROL Q-CRD P137/3 Continuous Rotation Dashpot Made in England

Name: KINETROL Q-CRD P137/3 Continuous Rotation Dashpot Made in England
Price: 249.0 USD
Availability: InStock

Product Overview

The KINETROL Q-CRD Continuous Rotation Dashpot, marked P137/3, is a rotary hydraulic damper designed to provide controlled resistance to rotational movement. It uses viscous damping to help regulate rotation and reduce sudden movement in compatible mechanical and industrial equipment.

The Q-CRD is a fixed-rate dashpot, making it suitable for applications where a consistent damping characteristic is required. Its compact construction makes it useful for machinery maintenance, equipment servicing, and replacement of compatible rotary damping components.

Technical Specifications

Brand: KINETROL
Model: Q-CRD
Part / Marking Number: P137/3
Product Type: Continuous Rotation Dashpot / Rotary Damper
Damping Rate: Fixed
Maximum Safe Torque: 1.5 Nm
Maximum Shaft End Load: 89 N
Maximum Shaft Side Load: 23 N
Operating Temperature Range: 0°C to +60°C
Typical Frictional Torque: 0.003 Nm
Body Material: Zinc alloy
Shaft Material: Mild steel
Country of Origin: England / United Kingdom
Weight: Approximately 214 g

Key Features

Continuous rotation damping
Fixed-rate damping performance
Compact mechanical design
Helps control rotational movement in compatible equipment
Suitable for industrial machinery maintenance and replacement applications

Applications

Industrial machinery and mechanisms
Rotary movement control systems
Mechanical equipment requiring damping
Maintenance and replacement of compatible KINETROL components

Compatibility Information

Please verify the model, shaft configuration, mounting dimensions, and damping requirements against your existing equipment before purchase. Damping performance depends on the specific internal fluid viscosity and operating conditions.
