Product Overview
The Telemecanique LT3-SA00M Thermistor Protection Relay, part number 068822, is an electronic motor protection device designed to monitor temperature using compatible PTC thermistor probes installed in motor windings.
When the thermistor circuit detects an excessive motor temperature or a probe-circuit fault, the relay changes its output state to help protect the motor and associated equipment. The unit features automatic reset and front-panel voltage and fault indication.
Part of the TeSys LT3 series from Telemecanique / Schneider Electric, this relay is designed for industrial motor protection and control applications.
Technical Specifications
Brand: Telemecanique / Schneider Electric
Series: TeSys LT3
Model: LT3-SA00M
Part Number: 068822
Product Type: PTC Thermistor Protection Relay
Supply Voltage: 115/230V AC, 50/60Hz
Output Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
Reset Type: Automatic reset

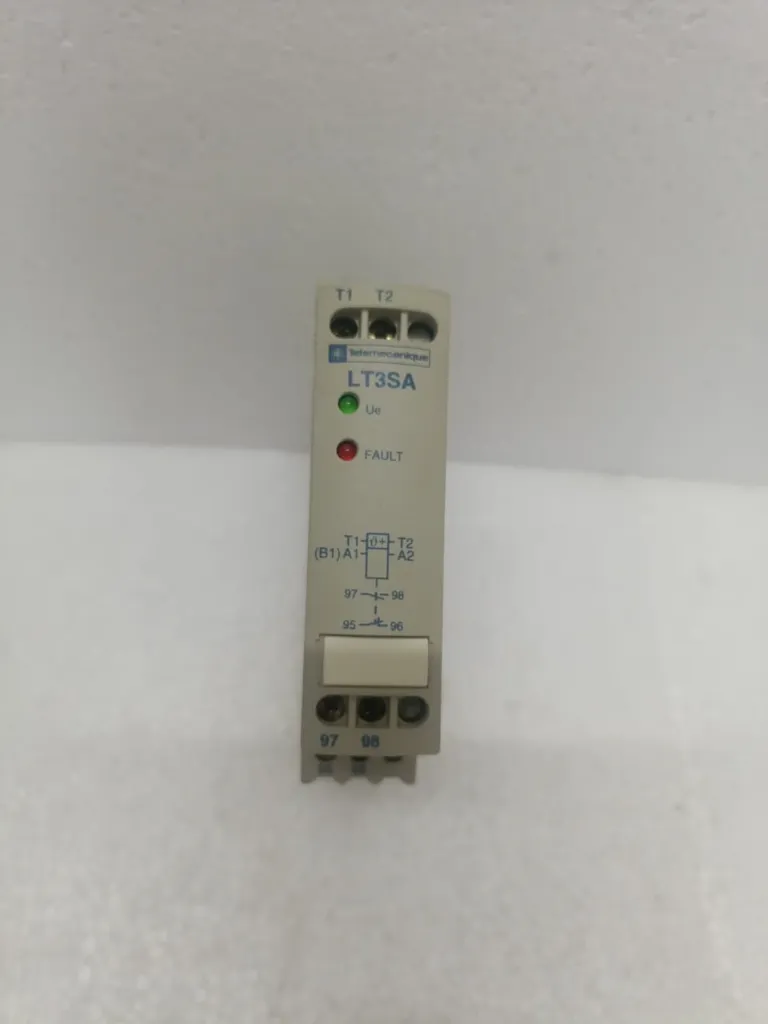

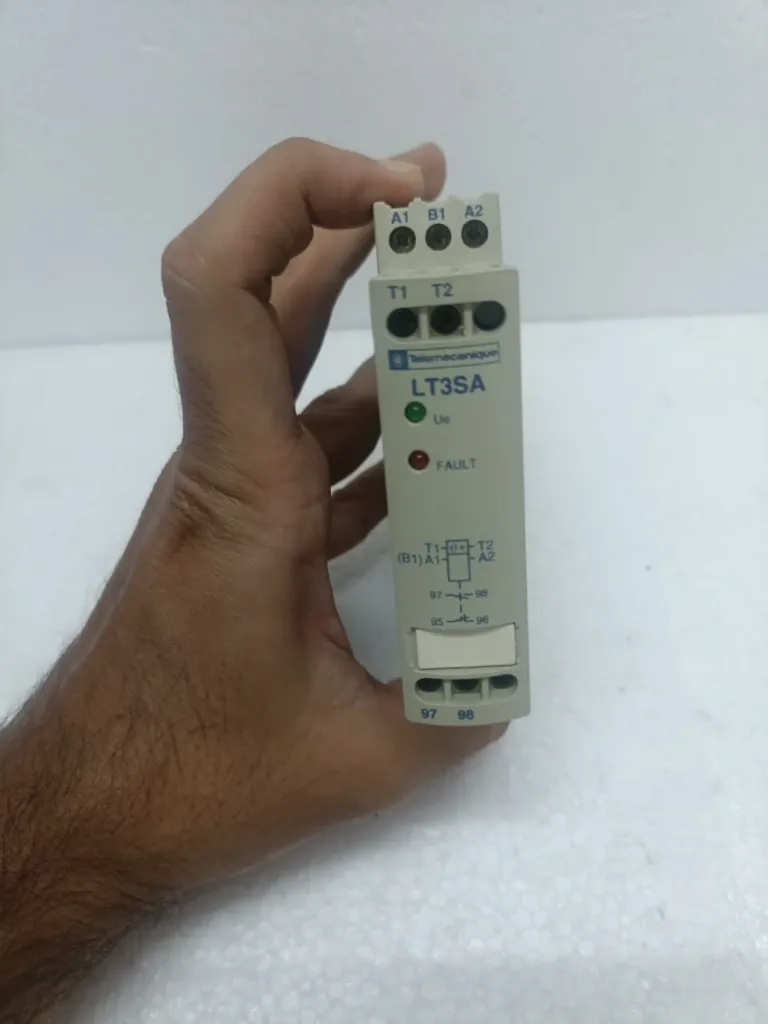

Indication: Front-panel voltage and fault indication
Mounting: DIN rail
Terminal Type: Cage-clamp terminals
Protection Rating: IP20
Application: Motor temperature monitoring and protection
Key Features
Monitors compatible PTC thermistor probes
Helps protect motors against overheating
Detects thermistor circuit faults
Automatic reset functionality
Front-panel status indication
Compact design for industrial control panels
Applications
The Telemecanique LT3-SA00M is suitable for:
Electric motor temperature protection
Industrial machinery and motor control panels
Pumps, fans and compressors
Motor-driven equipment in industrial installations
Replacement and maintenance of compatible legacy protection systems
Product Condition

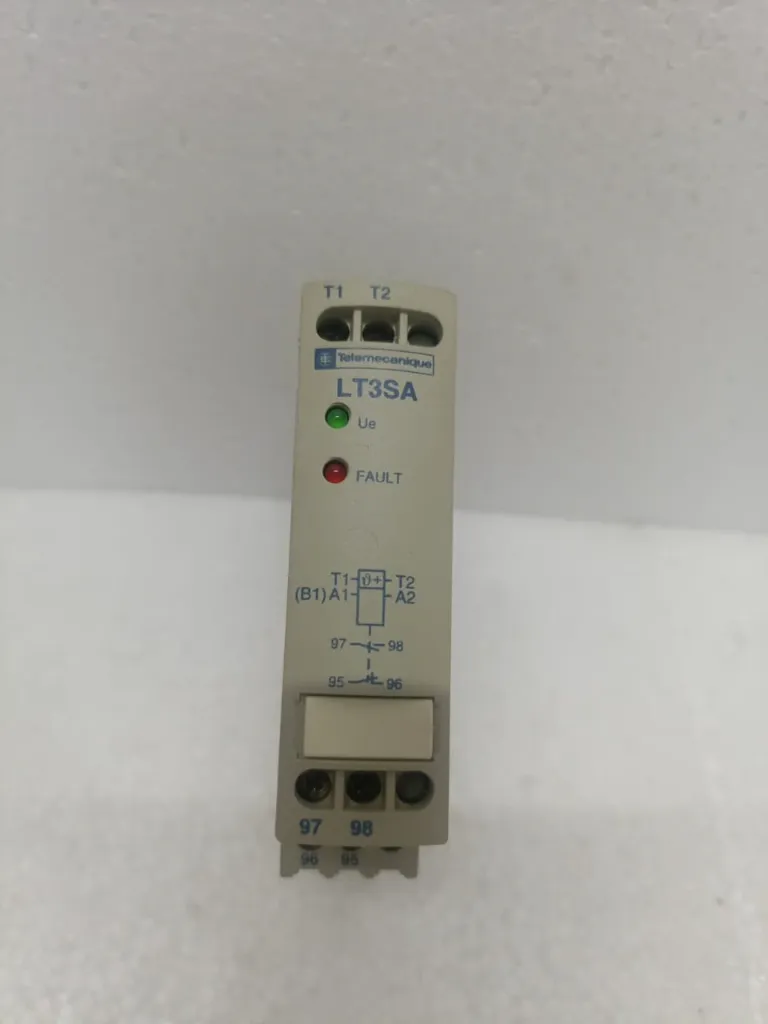

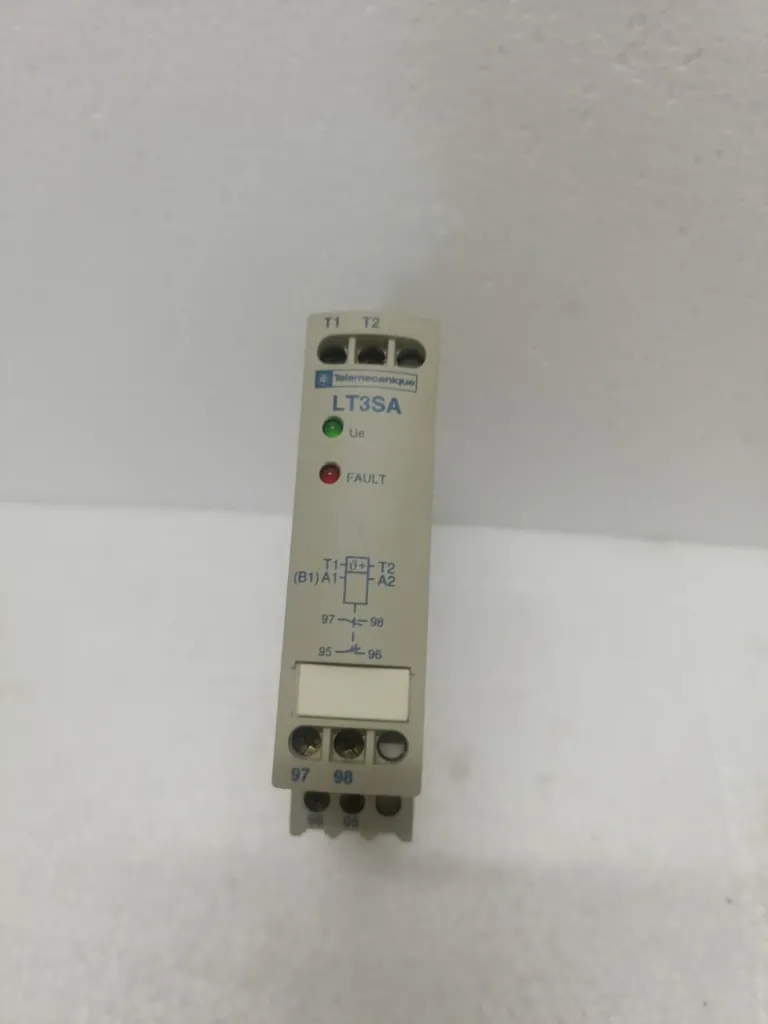

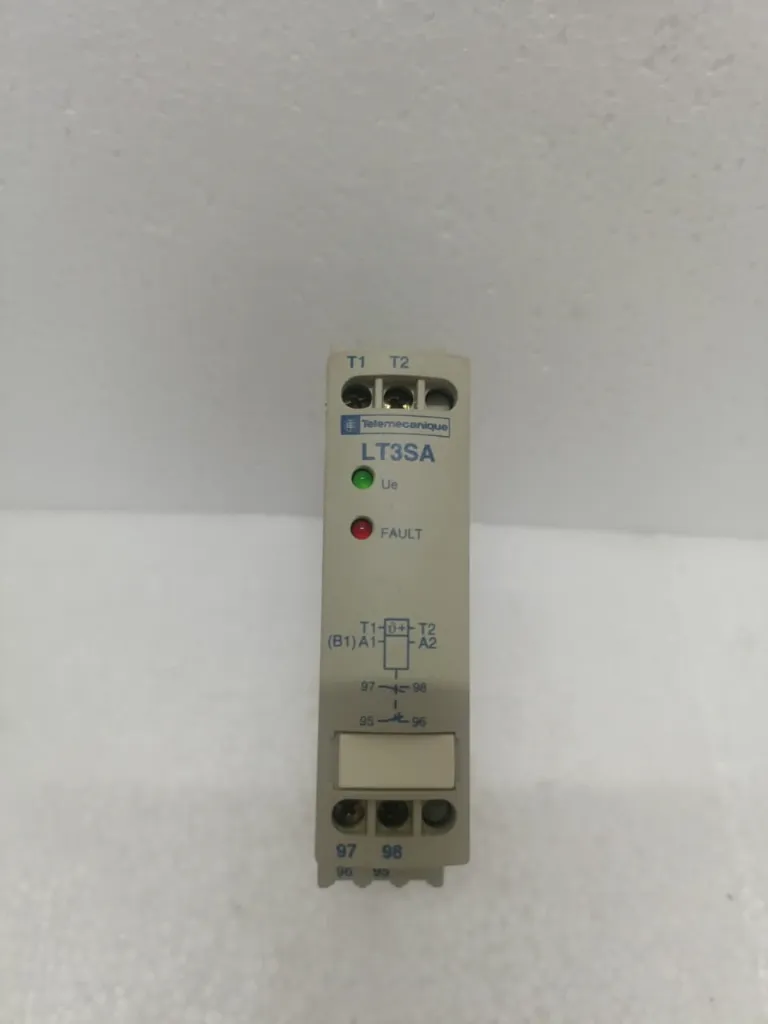

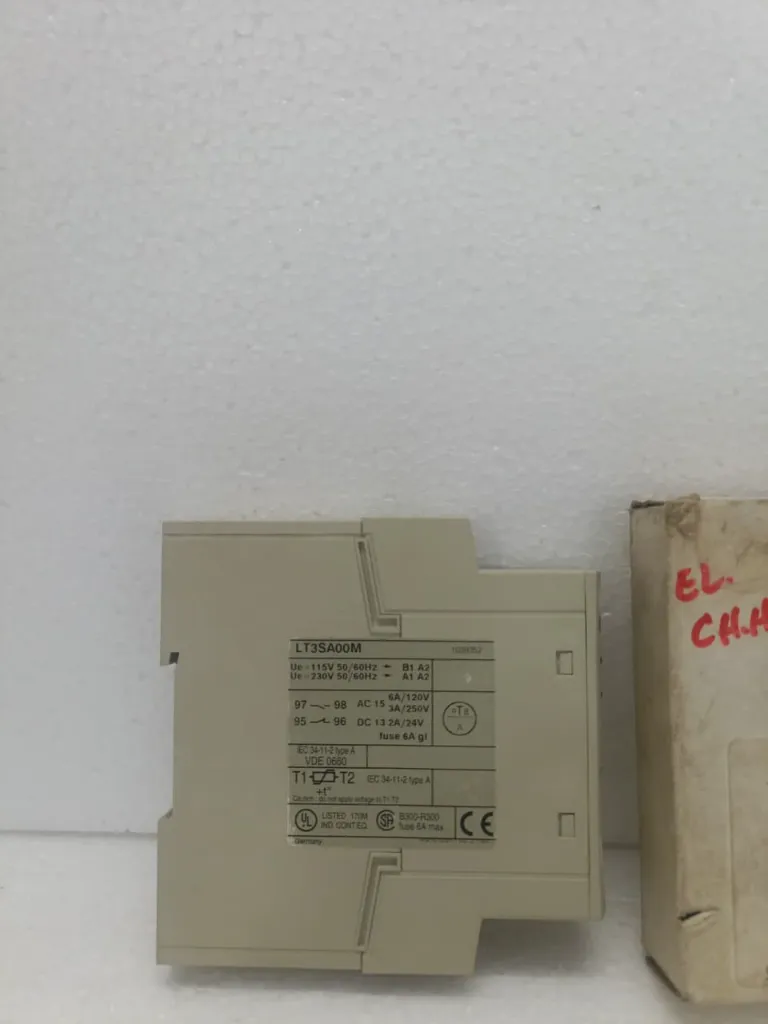

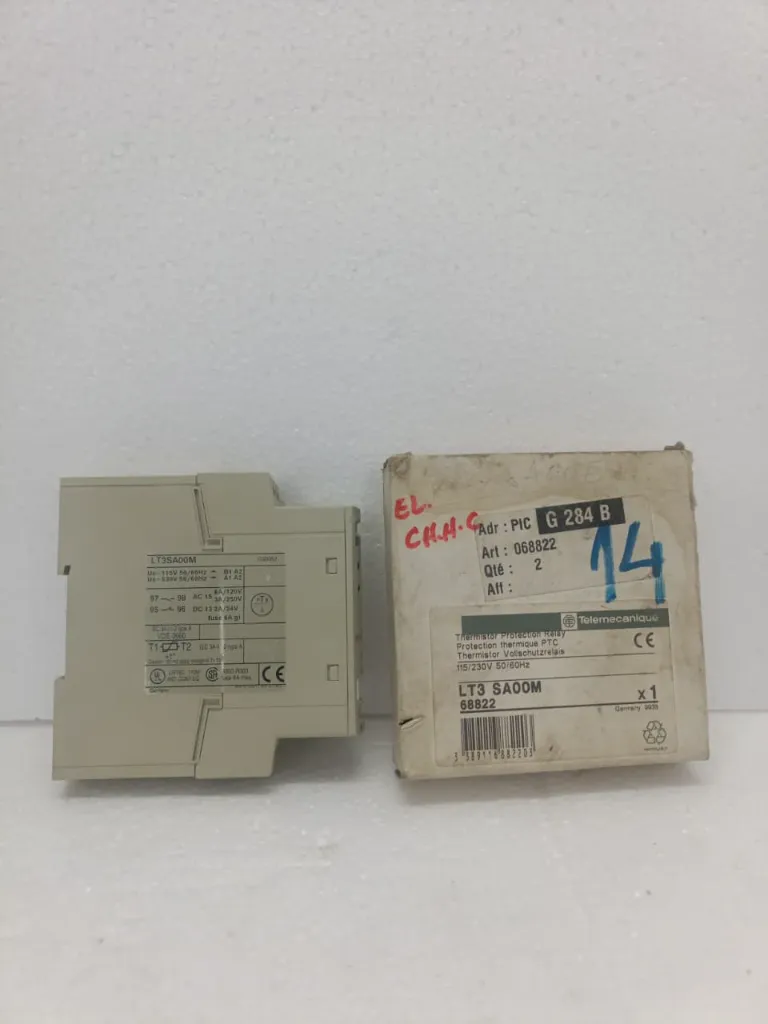

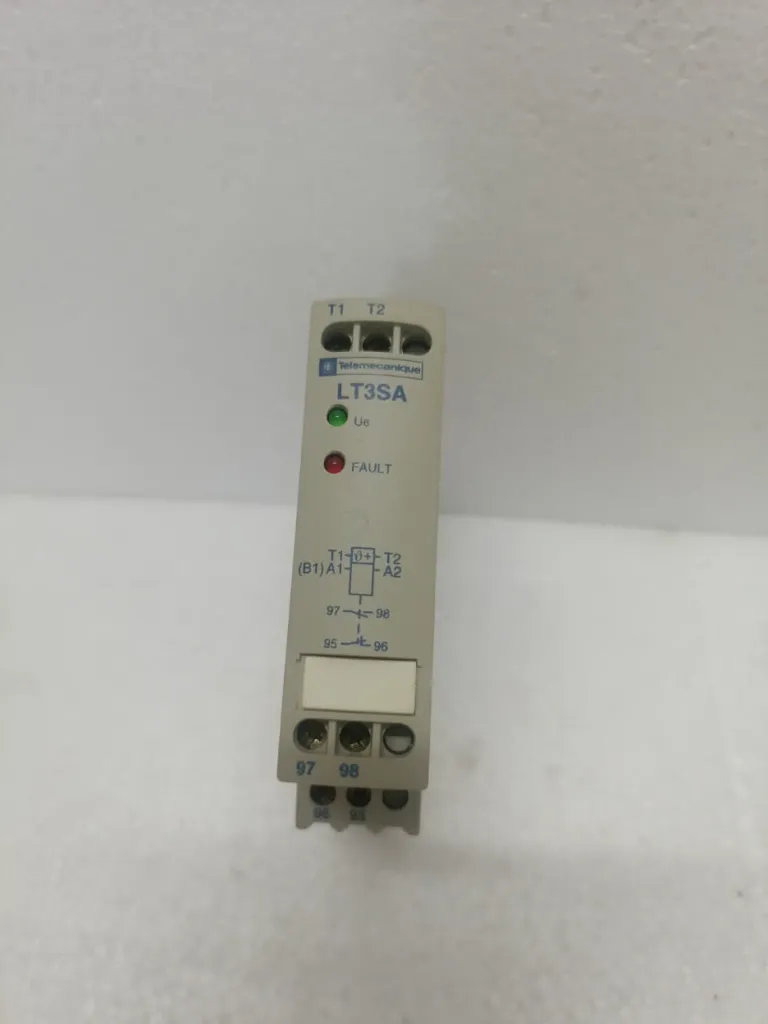

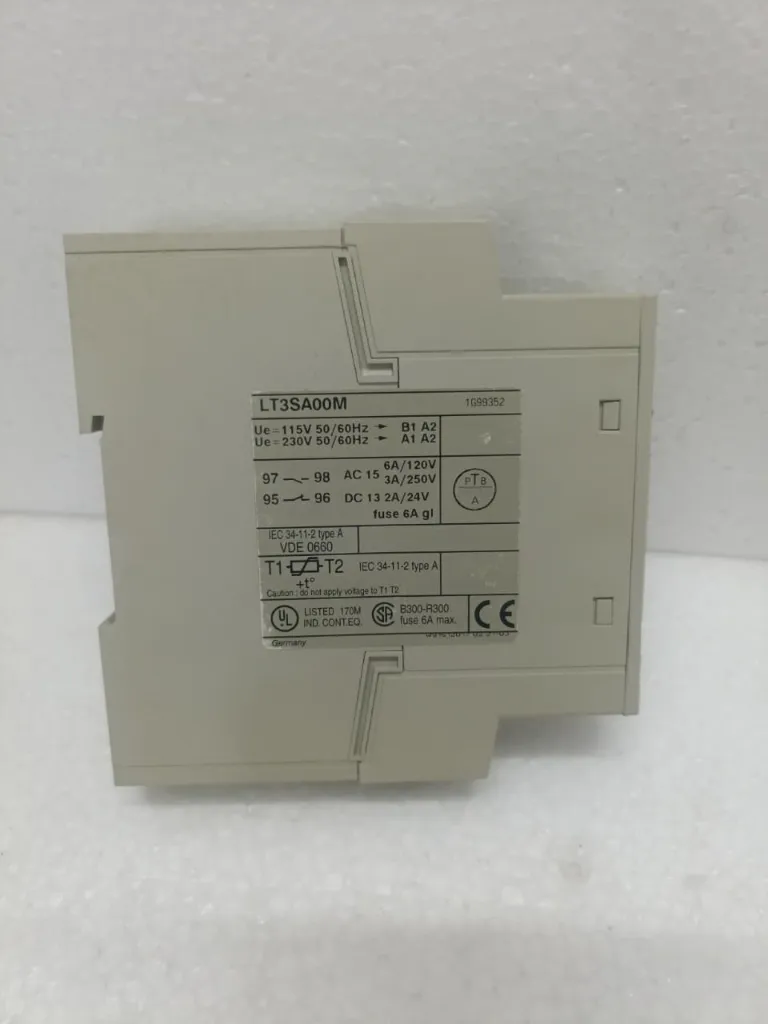

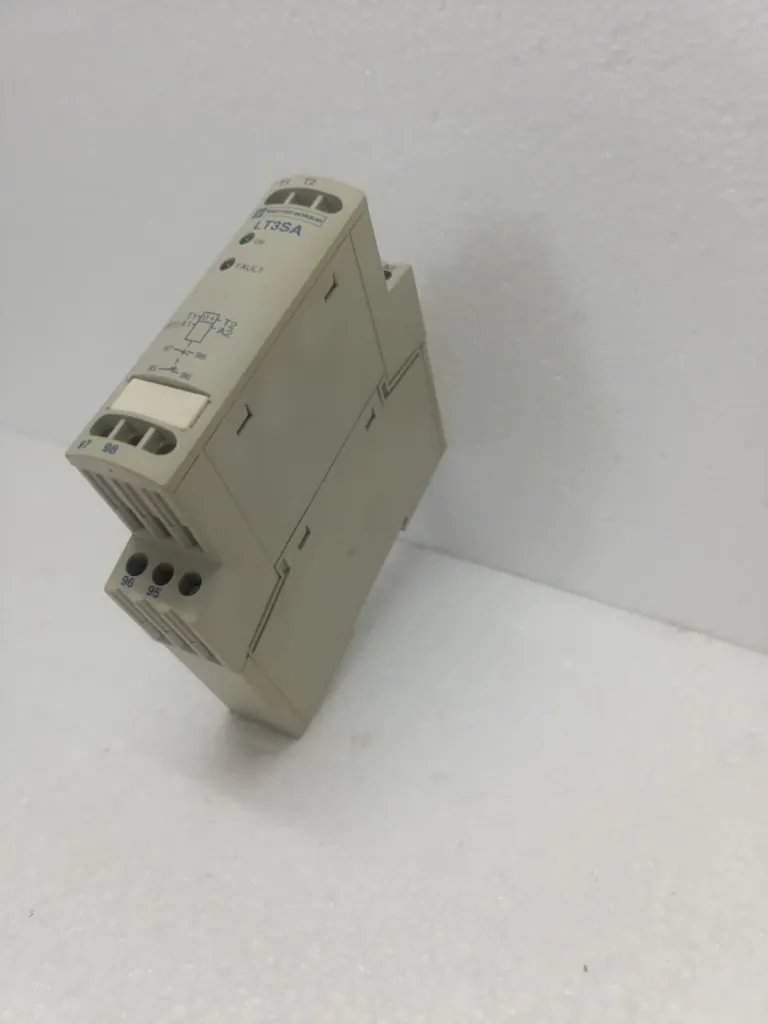

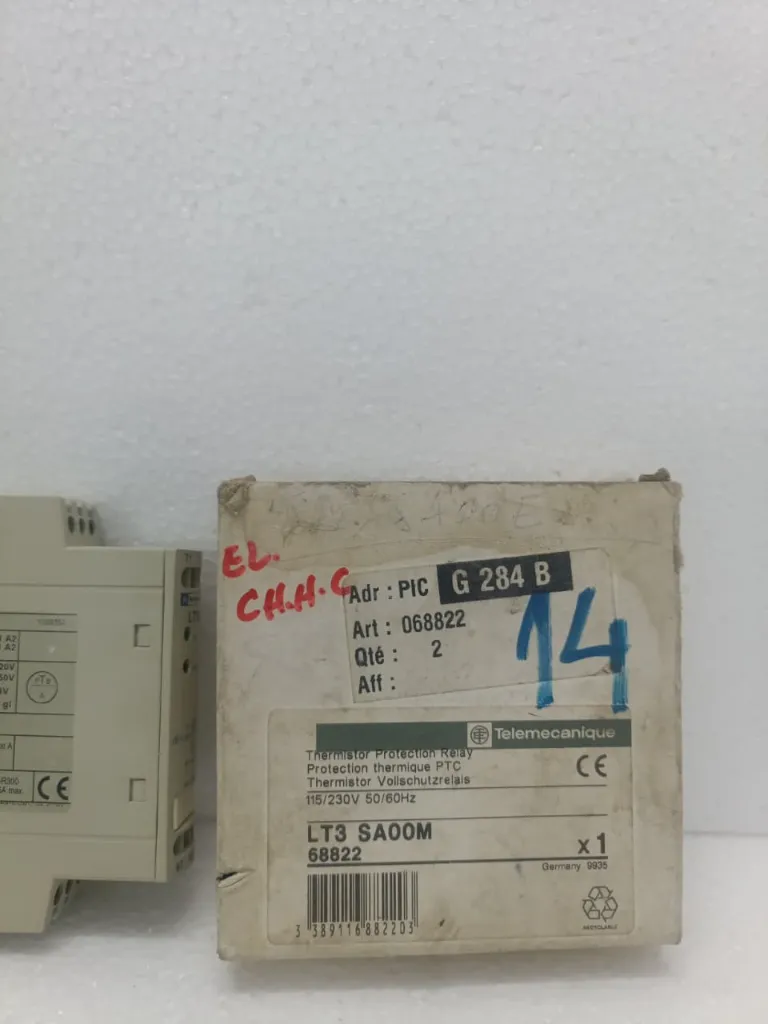

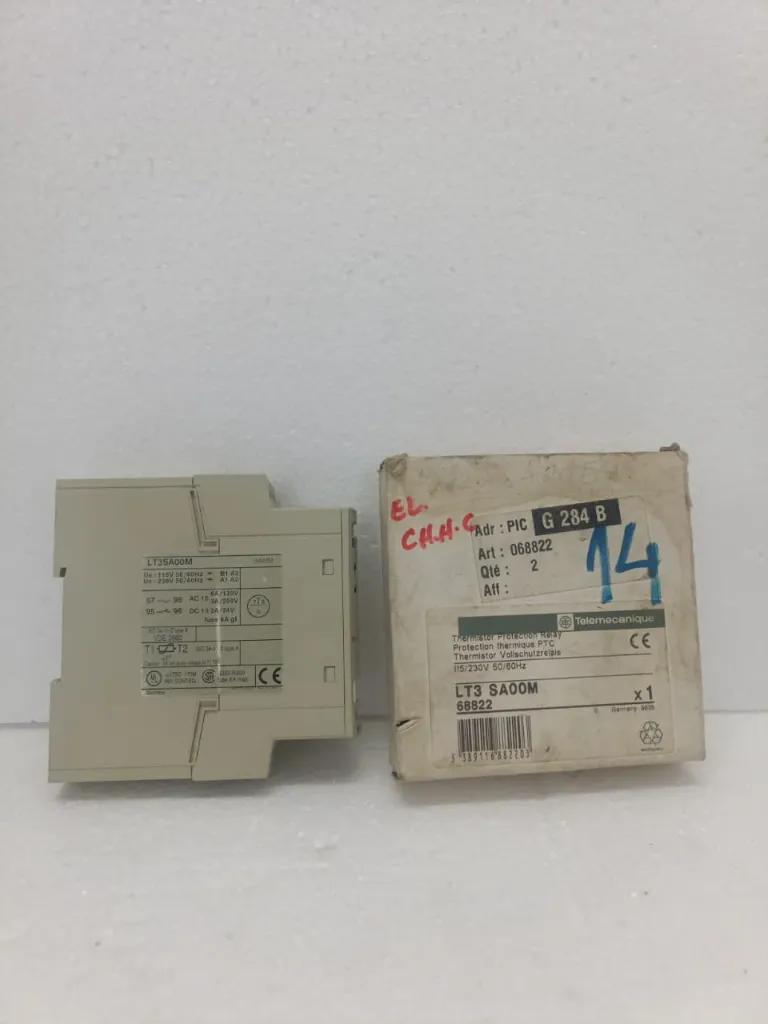

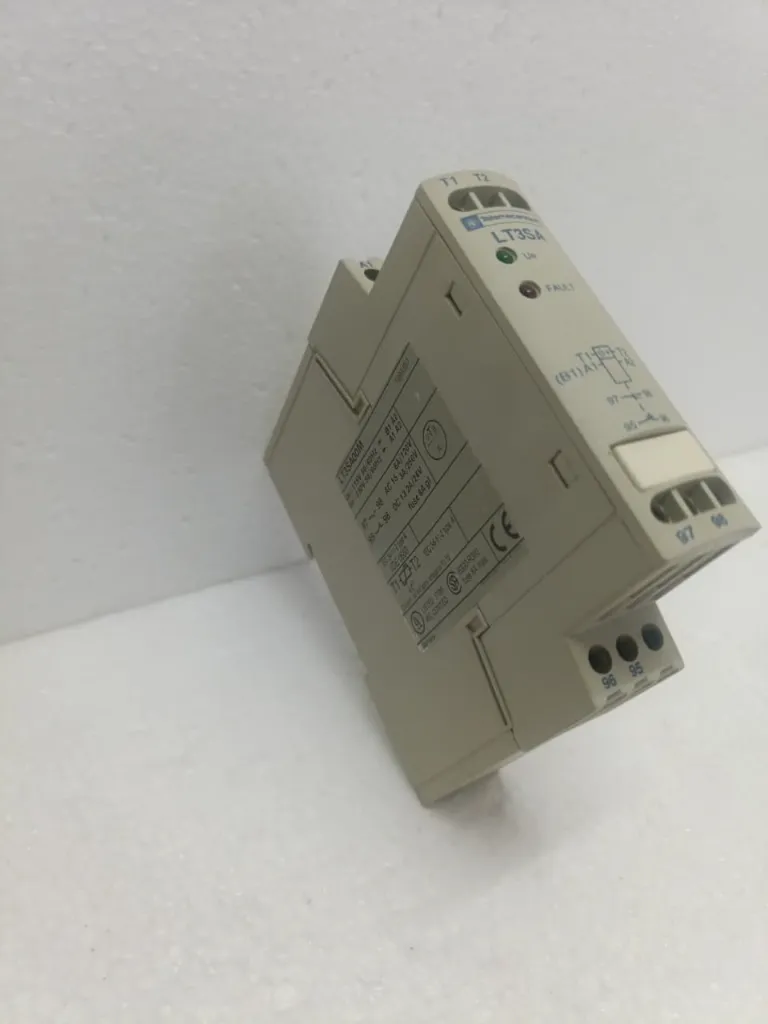

Please refer to the listing photographs and condition details for the exact item available.
Ordering Information
Contact Marine Industrial Parts for pricing, availability, bulk enquiries and worldwide shipping.
Please verify the supply voltage, PTC probe compatibility and output contact configuration before ordering.
