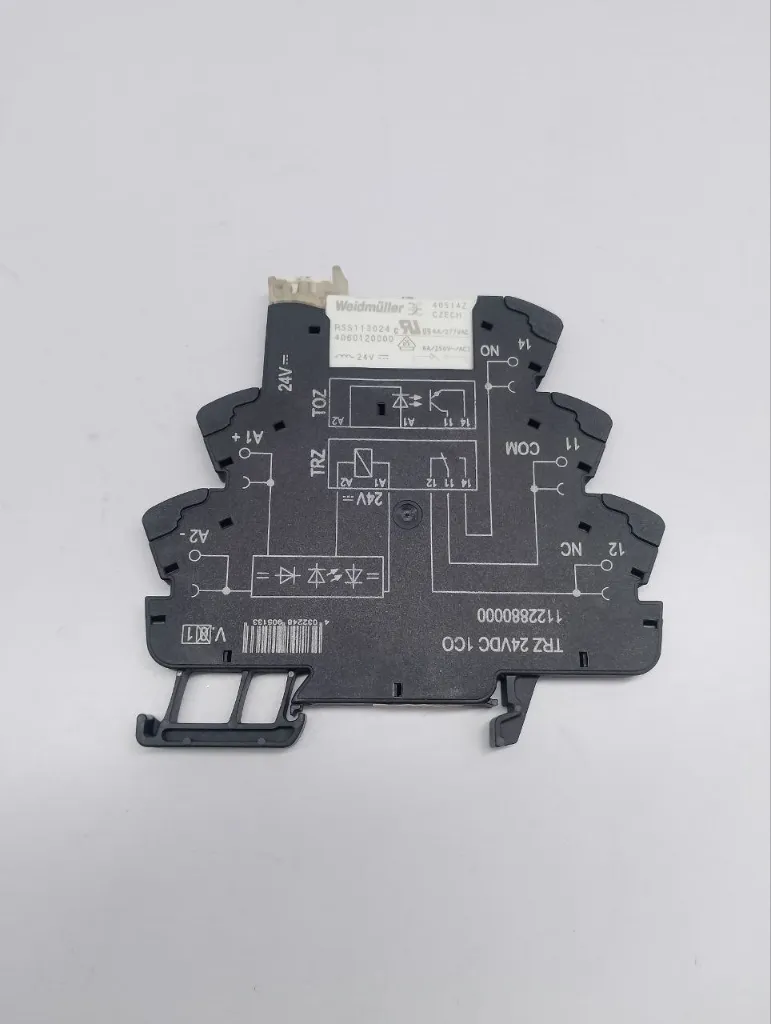

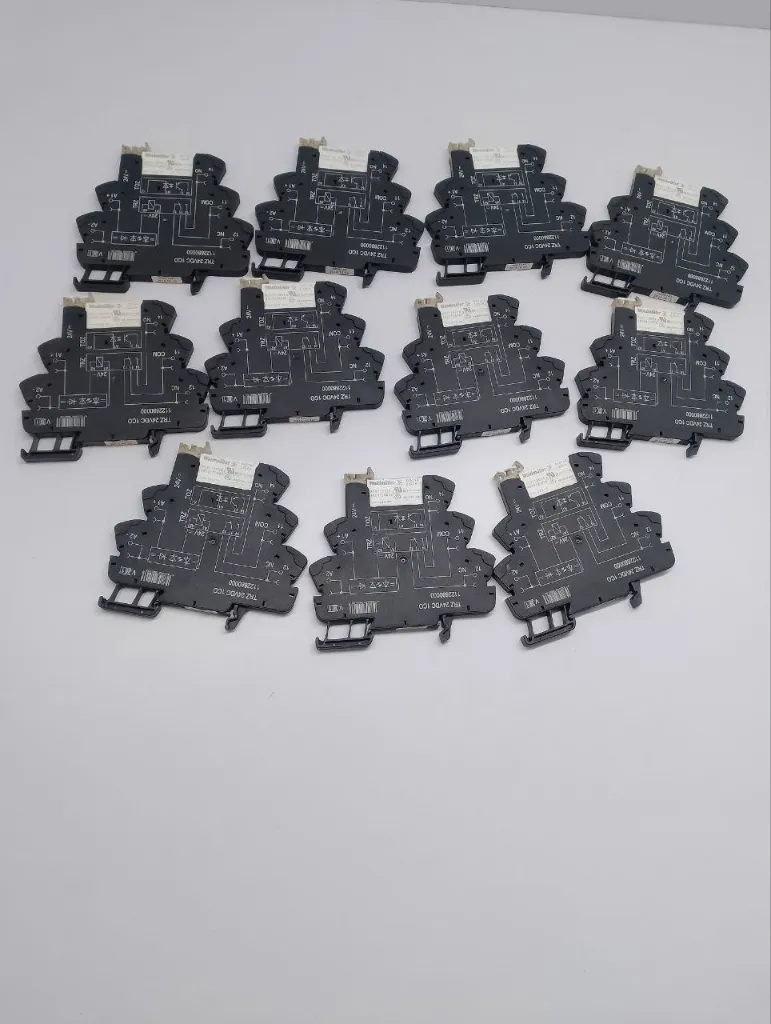

Specifications
Manufacturer: Weidmüller
Part / Order Number: 1122880000
Model Code: TRZ 24VDC 1CO
Series: TERMSERIES
Coil Voltage:24 VDC
Contact Configuration: 1 CO
Rated Current:6 A
Max. Switching Voltage: 250 V AC/ 250 V AC
Terminal Type: Tension Clamp / Spring Terminal (TRZ)
Protection Circuit: Integrated free-wheel diode & reverse polarity protection
Mounting Type: DIN Rail TS 35
APPLICATION
Industrial Automation & PLC Systems: Used to interface programmable logic controllers (PLCs) with field actuators, sensors, and solenoids.
Signal Isolation & Conditioning: Galvanically separates low-voltage control electronics ($24\text{ V DC}$) from higher voltage/current field loads ($250\text{ V AC}$).
Marine & Offshore Systems: Control panels aboard ships and tankers (e.g., engine rooms, pump systems).
Process & Factory Automation: Switching loads in conveyor belts, motor drives, heating elements, and safety circuits.
Categories
Industrial Electrical & Automation Equipment
Relays & Relay Modules
DIN Rail Mounted Relay Modules / Interface Relays
Weidmüller TERMSERIES Relays
Frequently Asked Questions (FAQ)
Q1: What does "TRZ" mean in the model name?
A: TRZ indicates that this TERMSERIES relay base uses tension clamp (spring-loaded) terminals for wire connection. The TRS variant uses standard screw terminals.
Q2: Can the relay insert be replaced separately?
A: Yes, this is a complete module consisting of a plug-in socket base and a removable miniature relay (such as the Weidmüller RSS113024).
Q3: Does this module require an external freewheeling diode?
A: No, the base has integrated free-wheel diode and reverse polarity protection built into its internal circuit.

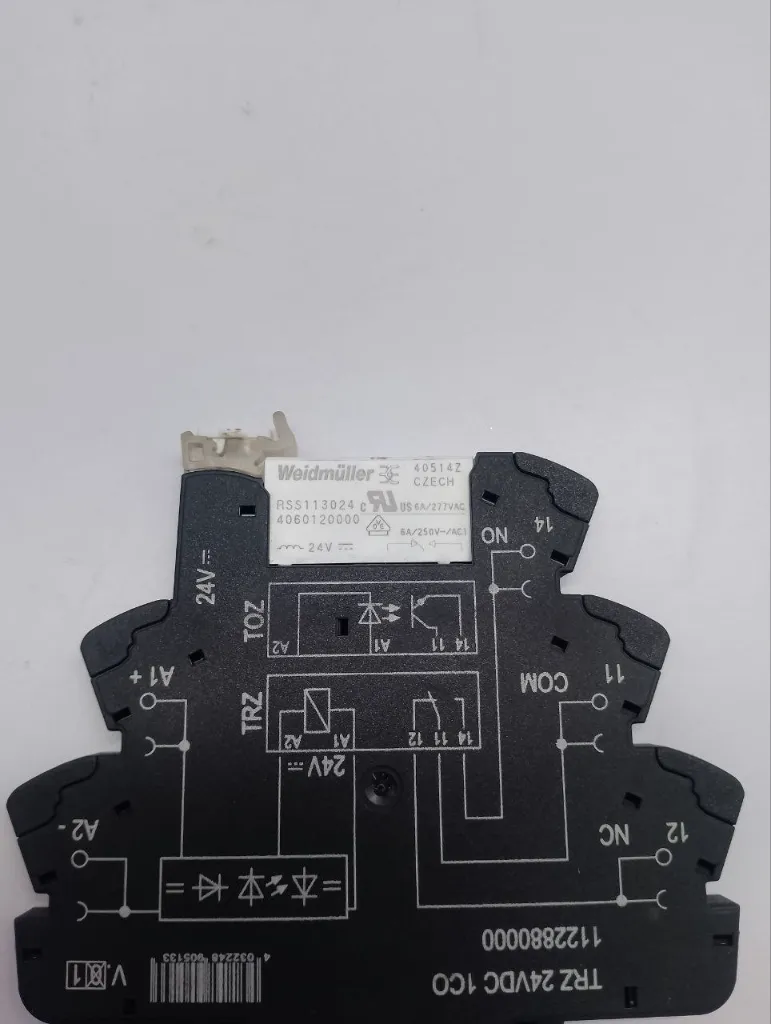

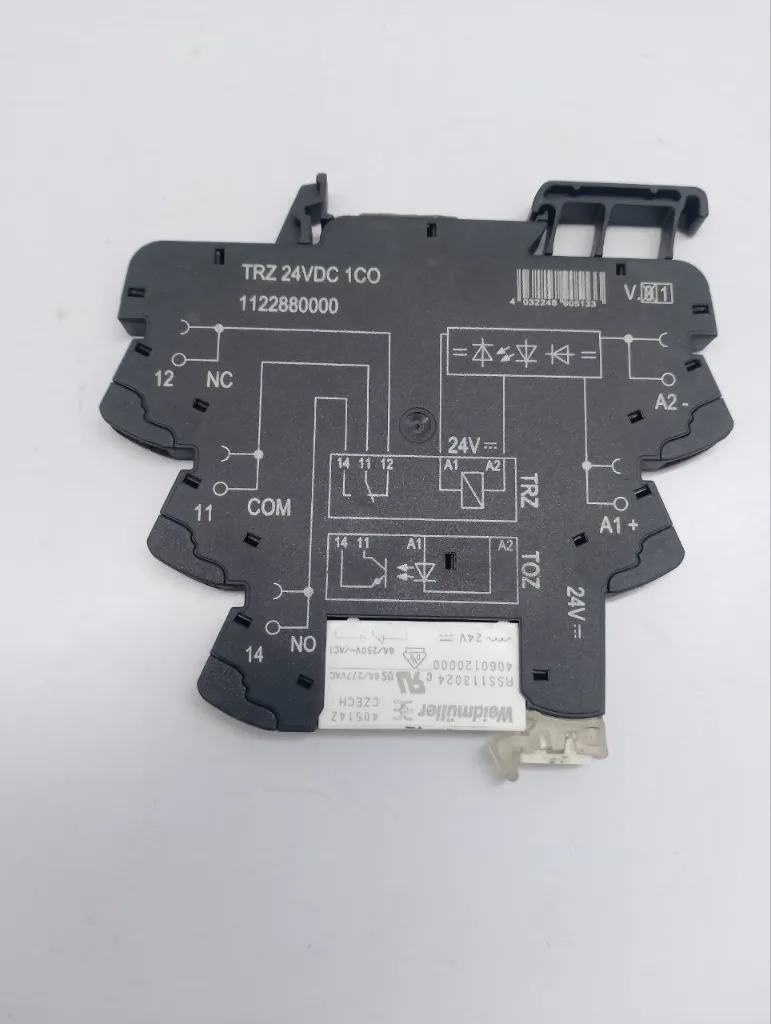

Q4: How do I read the contact wiring schematic printed on the side?
11 (COM): Common terminal
14 (NO): Normally Open contact
12 (NC): Normally Closed contact
A1 (+) & A2 (-): 24 V DC coil supply inputs
